Geocell

HDPE Geocell

Geocell Room is a three dimension net made of polyethylene in high strength, the material is sand, blinding and earth as the fill in, it become the common combination material, it has upper carrying capacity and become the roadbed and grass border slope....Chat Now

Product Description

Retaining Wall Plastic Geocell

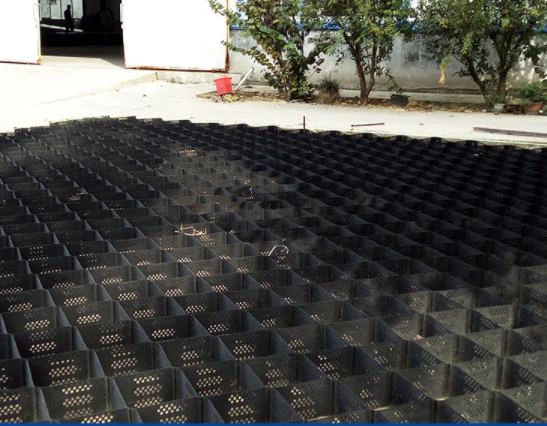

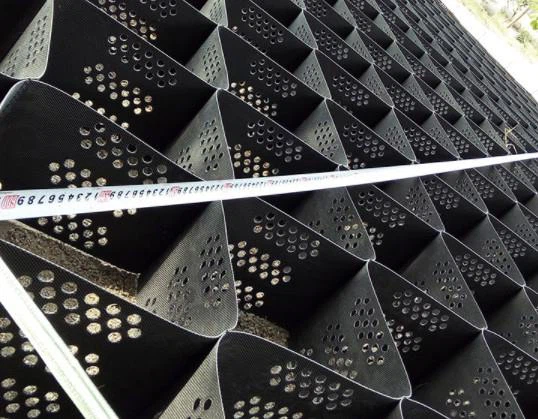

Geocell is honeycomb shaped structures, in material of HDPE, welded by highfrequency ultrasonic.

Being flexible,geocell can be folded in transit and outspreaded filling with sand, stone or concrete in roadbed construction.



image001_副本



Specification

1.Height:50mm-200mm

2.Welding distance:330mm-1000mm

3.Thickness of sheet: 1.0mm-1.5mm



Technical Parameter Retaining Wall Plastic Geocell

Product Type

Height

(mm)

Welding Distance

(mm)

Thickness

(mm)

Tensile Strength

of Welding Points(N/cm)

Tensile Strength of

Connection of Cells(N/cm)

Tensile Strength at

Yield of Each Sheet(N/Mpa)

Flat and Not Perforated

50≤H≤250

330≤A≤1000

1.1/1.2

≥100

≥120

≥20

Flat and Perforated

50≤H≤250

330≤A≤1000

1.1/1.2

≥100

≥120

≥20

Embossed and Not Perforated

50≤H≤250

330≤A≤1000

1.5

≥100

≥120

≥20

Embossed and Perforated

50≤H≤250

330≤A≤1000

1.5

≥100

≥120

≥20

Remarks:Width of the product can be made according to the customer’s demand, and the other special standards will be carried out by agreement or contact.



Benefits Retaining Wall Plastic Geocell

· Produces a stiff base with high flexural strength; acts like a semi rigid slab by  distributing loads laterally.

· Minimizes impact of differential and overall settlement even on low-strength subgrades.

· Increases effective structural number, reducing fill depth requirement by 50%.

· May allow use of poor-quality granular fills in place of more costly imported materials.

With permeable infill, reduces storm water runoff and effectively performs as an on-site storm water

retention/detention “basin” storage, reducing need and costs for storm water ponds.



image001_副本1



Application:

1. for a solid road, railway embankment.

2. to withstand the force of the load and the shallow river embankments.

3. is used to prevent landslides and by truck hybrid force retaining wall.

4. in the face of the soft ground. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed construction speed, good performance and greatly reduce the project cost.



Feature

1. With a retractable, telescoping transport available, the construction can be tensioned into a network, fill dirt, gravel, concrete and other loose material, the structure constitutes a powerful and large lateral stiffness limit.

2. Light weight, abrasion resistance, chemical stability, light oxidative aging, acid, suitable for different soil and desert soil conditions.

3. High lateral limits and non-slip, anti-deformation, effectively enhance the dispersion of load carrying capacity and subgrade.

4. Changing Geocell height, distance, etc. weld geometry can meet different project needs.
5. flexibility, transport small; easy to join, construction speed.



image001_副本2



image008_副本



Quality assurance

1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections

2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality

3.  For quality-related construction delay or substandard construction(except for damage or losses due to customer’s responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers’ feedbacks on quality issues within 24 hours.



After-sales service

1.In order to provide customers with comprehensive technical support,we will provide technical and other related information upon request in a timely manner.

2.In required,we will appoint specialized technicians to the construction site to give technical trainings to construction people,and offer technical guidance throughout the whole construction process.

3.For damage due to shipment and delivery,after we receive the complaint,we will check the issure through provided pictures and videos.If our responsibility is confirmed,we wil offer free replacement.

4.When the construction is completed,as your request,our technical staff may participate in the final acceptance.



Production line of geocell

image008_副本5



Q1. Can you do OEM?
A1. Yes.of course.We can produce the products as per your request.
If you can offer samples to us,it will be more convenient.
Q2. If I want to order a small quantity goods,can you do it?
A2. If the product you need we have stock available,that would be great,you can choose the instock goods.
but if not, don’t worry, we can take your order with our other clients’ order to be produced together.
But it needs to wait some time .
Q3. Can I get a sample from your company?Should I pay for the express fee?
A3. If you can accept our available sample,we can offer free sample to you.
If you want a customized sample,we can renegotiate the cost.
About the express fee,please offer a freight collected account and pay for the express fee by your side.
After confirming your order, the sample’s freight cost will be deducted from your order’s total cost.
Q4. How will you follow my order?
A4. When the goods are started to produce,we will take photos for the goods and send it to you.
If you find any production deficiencies,please contact us to correct it.
We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the latest news about your order.
After the goods are finish,we will take photos for the goods and packing to you before shipping.
Q5. What is your exporting countries?
A5. We have good sales performance and win good international reputation in more than 15 Countries and regions,such as Japan, America, Australia,Russia, Canada,Middle East and so on.Especially in the Middle East and Australia market.
