Woven Geotextile

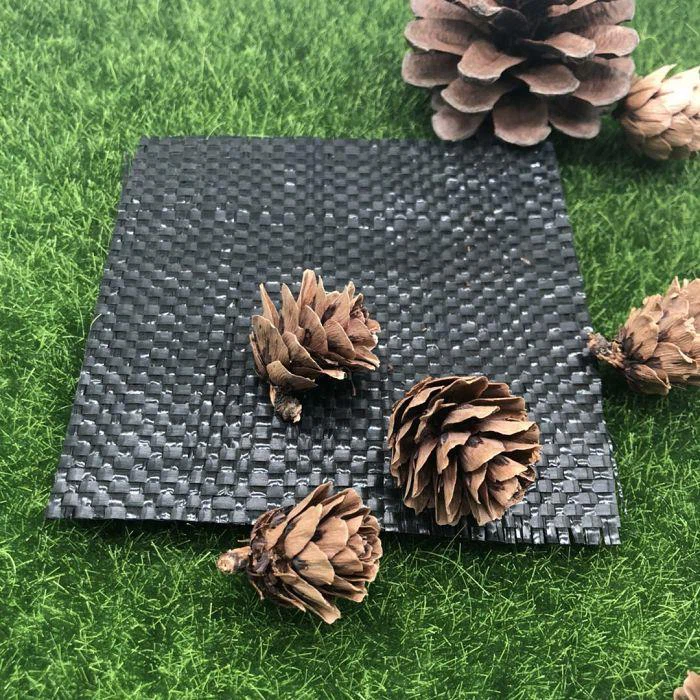

Split Yarn Woven Geotextile

1)Material: PP
2)Weight: 100--400g/m2
3)Tensile strength:20/15-100/70KN/m
4)Width:50-600cm
5)Split yarn woven geotextile’s Applications:
Used in project of highway,railway,dam and coastal tidal land for anti-leakage,filtering,draining,isolation,etc....Chat Now

Production introduction of Split yarn (flat silk)PP Woven Geotextiles:

These are manufactured by weaving flat strands of polypropylene that are created by slitting a plastic sheet.



These geotextiles aid in construction over soft or weak soils by providing separation and stabilization and are excellent for park-on/drive-on applications. While they are permeable, slit-film geotextiles perform poorly when a gradient ratio test is performed. Therefore, they can clog. As such, they are not recommended for filtration applications such as bulkheads, erosion control or underdrains. XY 200 is our most commonly used woven slit-film.



Function:

(1) Reinforcing effect: It can stably restrict the transfer of the project during prolonged use. The well can transfer the local stress acting on the soil or distribute it to a larger area.

(2) Separation: The geotextiles are used to separate the different geotechnical materials to form a stable interface, and their respective characteristics and overall functions are fulfilled as required.

(3)  Drainage Filtration Function: The woven geotextile can let the water pass through and stop the loss of sand granules. When it is used for drainage, the woven geotextile is placed in the soil with poor water permeability to act as a slow pumping well to push the water along the woven geotextile.

(4) Anti-grass cloth can effectively suppress the growth of all kinds of weeds, has good water permeability and air permeability, so that the root of the air has a certain degree of mobility can prevent the soil hardening lead to poor growth of crop roots, preventing the plant roots Decay and surface area on the surface of the fabric lead to pests and diseases.


Technical specification of Split yarn (flat silk) PP woven geotextile

NO.

Project

Index

20-15

30-22

40-28

50-35

60-42

80-56100-70

1

Breaking strength KN/m≥(LD)

20

30

40

50

60

80

100

2

Breaking strength KN/m≥(TD)

15

22

28

35

42

56

70

3

Elongation Rate %≤(LD,TD)

28

4

Trapozoidal tearing strength KN≥(LD)

0.3

0.45

0.5

0.6

0.75

1.0

1.2

5

Burst strength KN≥

1.6

2.4

3.2

4.0

4.8

6.0

7.5

6

Vertical permeability coefficien cm/s

10-1-10-3

7

Sieve size(O95)mm

0.08-0.5

8

Unit weight g/m2

120

160

200

240

280

340

400

9

Variation %

±10


ADVANTAGES:

Most versatile material

Cost effective

Enhanced hydraulic and mechanical properties

Easy and fast installation

Excellent clogging resistant


Application:

Used in project of highway,railway,dam and coastal tidal land for anti-leakage , filtering , draining , isolating etc.


image001_副本



WHY XINYU GEOSYNTHETICS ENGINEERING PRODUCT?

Manufactured in China as per international standards.

Excellent quality product by the specialist.

Wide range of products to meet the exact requirement.

Easily delivery.

Economical design solution.

Use the best and world-wide raw material.

Use all indigenous material.

Manufacturing,support facility is ISO 9001 certified.

In house testing of products.

Our products are highly accepted product worldwide.

We supply all over China as well as export to all around the world.



image002_副本


image002_副本1



Geotextile’s packing,loading&shipping.

image002_副本3


Quality assurance

1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections

2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality

3.  For quality-related construction delay or substandard construction(except for damage or losses due to customer’s responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers’ feedbacks on quality issues within 24 hours.



After-sales service

1.In order to provide customers with comprehensive technical support,we will provide technical and other related information upon request in a timely manner.

2.In required,we will appoint specialized technicians to the construction site to give technical trainings to construction people,and offer technical guidance throughout the whole construction process.

3.For damage due to shipment and delivery,after we receive the complaint,we will check the issure through provided pictures and videos.If our responsibility is confirmed,we wil offer free replacement.

4.When the construction is completed,as your request,our technical staff may participate in the final acceptance.
