Long Fiber Polyester Woven Geotextile
High-strength filament woven geotextiles are mainly made of high-strength, low-stretch polyester fibers (polyester ) and polypropylene fibers (polypropylene) with a maximum width of 4.2 meters and a weight range of 150 grams to 800 grams. High-strength woven geotextiles mainly include high-strength woven geotechnical mould bags, high-strength woven geotextile anti-filter cloths, high-strength woven geotextile anti-seepage cloths, high-strength woven geotextile composite cloths, etc.
Product Introduction

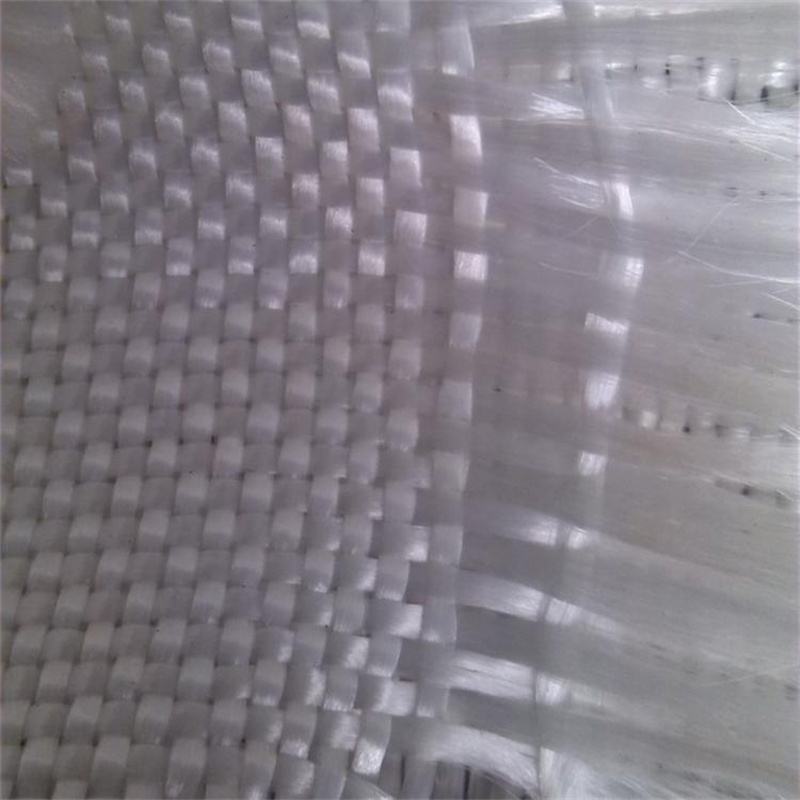

Long fiber polyester woven geotextile
Product description
High-strength filament woven geotextiles are mainly made of high-strength, low-stretch polyester fibers (polyester ) and polypropylene fibers (polypropylene) with a maximum width of 4.2 meters and a weight range of 150 grams to 800 grams. High-strength woven geotextiles mainly include high-strength woven geotechnical mould bags, high-strength woven geotextile anti-filter cloths, high-strength woven geotextile anti-seepage cloths, high-strength woven geotextile composite cloths, etc.
Features
Woven geotextiles have good chemical and physical properties and hydraulic performance, and are upgrading products of sand and stone mats and filter layers. It breaks through the single function of the traditional stone layer, and not only has multiple functions such as drainage and drainage, filtration and separation, separation and disassembly, reinforcement and reinforcement, but also has features such as simplified design, convenient construction, less earth and stone, and prolonged maintenance period. The cost of the project has been reduced and it has received the attention and application of the leadership of the water conservancy department and the experts of the hydraulic industry.
Technical data
Technical specification of Long fiber polyester woven geotextile
No. | Item | Note | |||||||||||
1 | Unite weight, g/m2 | 140 | 202 | 260 | 320 | 390 | 460 | 530 | 600 | 680 | 760 | 950 | |
2 | Breaking strength, LD,KN/M | 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 182 | 200 | 250 | |
3 | Breaking strength, TD, KN/M | According to contract,if no special demands, it will be 1.7times of LD breaking strength | |||||||||||
4 | Breaking elongation % ≤ | LD 35, TD 30 | |||||||||||
5 | Width variation % | -0.1 | |||||||||||
6 | CBR mullen burst strength, KN≥ | 20. | 4.0 | 6.0 | 8.0 | 10.5 | 13 | 15.5 | 18 | 20.5 | 23 | 28 | |
7 | （O95）mm Sieve size | 0.07-0.5 | |||||||||||
8 | Vertical permeability coefficient, cm/s | K×（10-2-0.5-5） | K=1.0-9.9 | ||||||||||
9 | Impact irrigation thickness variation | ±8 | Only for fabric form | ||||||||||
10 | Length width variation % | ±2 | |||||||||||
11 | Sewing strength, KN/m ≥ | Breaking strength ×50% | |||||||||||
12 | Tearing strength, KN,≥ | 0.5 | 0.8 | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 | 2.1 | 2.3 | 2.5 | 3.0 | |
Range of use
Anti-filtering for dams and slope protection in water conservancy projects, isolation and seepage prevention of channels, basic isolation of roads, railways, and airport runways, inversion filtration, drainage, earth slopes, retaining walls and pavement reinforcement, drainage, and port engineering projects Soft ground treatment, beach embankment, seaport wharf and anti-wave reinforcement, drainage, landfill, thermal power plant ash dam, mine tailings dam isolation, seepage control.
