LST600 Hand Extruder
This series of hand extruder is the first one to have a digital display control, 360-degree rotating welding head, the motor cold start protection, independent heating of welding rod and membrane material and other functions. Applicable to welding PE PP PVC PVDF and other hot melt material.
Product Introduction
LST600 hand extruder
This series of hand extruder is the first one to have a digital display control, 360-degree rotating welding head, the motor cold start protection, independent heating of welding rod and membrane material and other functions. Applicable to welding PE PP PVC PVDF and other hot melt material.
Product Applications

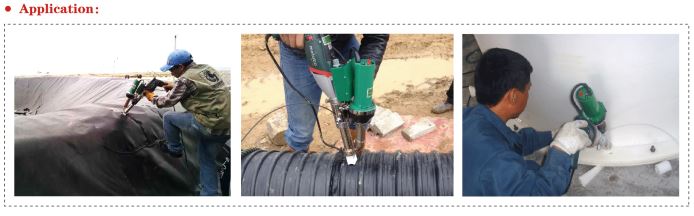

This series of hand extruders is suitable for welding a variety of hot - melt materials, including but not limited to polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), and polyvinylidene fluoride (PVDF). In practical applications, it is often used for the welding of various geomembranes, such as anti - seepage projects in landfills, waterproof projects of artificial lakes, and anti - seepage treatment in water conservancy projects. It can ensure a firm connection between geomembranes and effectively prevent leakage.
Technical data
|
Technical data |
|
|
Voltage |
220V±5% |
|
Frequency |
50/60HZ |
|
Extruding Power |
800W/1020W |
|
Hot air power |
1600W/3400W |
|
Welding rod heating power |
800W |
|
Air temp. |
20-600℃ Adjustable |
|
Extruding temp. |
200-300℃ Adjustable |
|
Welding speed |
2.0-2.5kg/h |
|
Welding Rod DIA. |
3.0-4.0MM |
|
Weight |
5.5-7.5kg |
|
Type |
LST600A |
LST600B |
LST610A |
LST610B |
|
Extruding Power |
800W |
800W |
1020W |
1020W |
|
Hot air power |
1600W |
3400W |
1600W |
3400W |
|
Welding speed |
2.0KG/h |
2.0KG/h |
2.5KG/h |
2.5KG/h |
|
Welding Rod DIA. |
3.0-3.5mm |
3.0-3.5mm |
3.0-4.0mm |
3.0-4.0mm |
|
Weight |
5.5kg |
6.0kg |
7.0kg |
7.5kg |
why choose This Welding Machine
Product Features
Digital Display Control
It adopts a microcomputer chip controller, making the operation simple and convenient. Through the digital display screen, users can intuitively view various operating parameters of the equipment, such as temperature and welding speed, and can accurately adjust them, greatly improving the accuracy and stability of welding.
360 - Degree Rotating Welding Head
The uniquely designed 360 - degree rotating hot - air welding nozzle can flexibly adapt to different welding requirements. Whether it is flat - surface welding or complex - shaped welding scenarios, it can handle them easily, improving the convenience and efficiency of welding.
Motor Cold - Start Protection
It has the function of motor cold - start protection. When the equipment does not reach the preset melting temperature, the extruding motor will automatically shut down. This function effectively prevents equipment damage caused by operator errors and extends the service life of the equipment.
Dual Heating System
It is equipped with a welding rod feeding heating system and a hot - air heating system. The two heating systems work together to ensure that the welding rod and the membrane material are evenly heated during the welding process, guaranteeing the best welding quality. The strength and tightness of the welded joint can reach high standards.
Different models of the equipment may vary in power, welding speed, applicable range of welding rod diameter, and weight. The specific parameters are as follows:
| Extruding Power | 800W | 800W | 1020W | 1020W |
|---|---|---|---|---|
| Hot Air Power | 1600W | 3400W | 1600W | 3400W |
| Welding Speed | 2.0KG/h | 2.0KG/h | 2.5KG/h | 2.5KG/h |
| Welding Rod DIA. | 3.0 - 3.5mm | 3.0 - 3.5mm | 3.0 - 4.0mm | 3.0 - 4.0mm |
| Weight | 5.5kg | 6.0kg | 7.0kg | 7.5kg |
Users can choose the appropriate model according to their actual welding requirements.
Precautions for Use
Temperature Requirement
The welding machine can start welding only when the temperature reaches 270°C. Welding before the temperature reaches the standard may lead to problems such as weak welding and poor weld quality.
Welding Rod Selection
It is recommended to use PE or PP welding rods with a diameter of 3.0 - 3.5mm to ensure the welding effect. Using mismatched welding rods may affect the welding strength and quality.
Customization Service
If users have any special customization requirements, they can directly contact us. We have a professional technical team that can provide personalized solutions for customers.
services we offer
Technical Support
In order to provide customers with comprehensive technical support, we will timely provide technical materials and other relevant information according to customers' needs, helping customers better understand and use the product.
On - Site Training and Guidance
If required, we will assign specialized technicians to the construction site to provide technical training for construction workers and offer technical guidance throughout the entire construction process.
Damage Replacement
For damage caused during shipment and delivery, after receiving the complaint, we will check the issue through the provided pictures and videos. If our responsibility is confirmed, we will offer free replacement.
Final Acceptance Participation
After the construction is completed, as per your request, our technical staff may participate in the final acceptance.
