Steel Plastic Geogrid
Geogrid is divided into: Fiberglass geogrid, Polyester geogrid, Steel plastic geogrid, PP weld geogrid, Uni-direction Plastic geogrid, Bia-direction Plastic geogrid.
Product Introduction

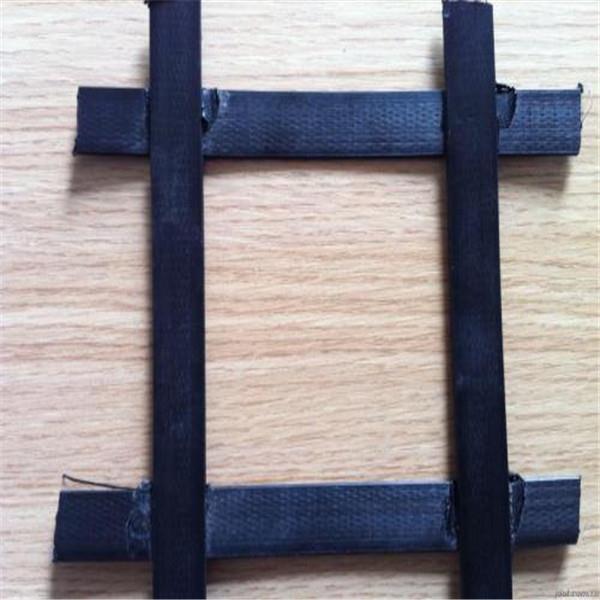

Steel plastic geogrid
Product description
Geogrid is divided into: Fiberglass geogrid, Polyester geogrid, Steel plastic geogrid, PP weld geogrid, Uni-direction Plastic geogrid, Bia-direction Plastic geogrid.
Technical data of Steel Plastic geogrid
Item | GSZ30-30 | GSZ40-40 | GSZ50-50 | GSZ60-60 | GSZ80-80 | GSZ100-100 | GSZ125-125 | GSZ150-150 | |
KN/m ≥ Each linear meter breaking force | MD | 30 | 40 | 50 | 60 | 80 | 100 | 125 | 150 |
TD | 30 | 40 | 50 | 60 | 80 | 100 | 125 | 150 | |
Elongation% ≤ | MD | 3 | |||||||
TD | 3 | ||||||||
KN/m ≥ Each linear meter breaking force | MD | 26 | 32 | 45 | 54 | 87 | 87 | 110 | 130 |
TD | 26 | 32 | 45 | 54 | 87 | 87 | 110 | 130 | |
N≥ spot peeling strength | 30 | ||||||||
宽度m Width | 4-6+0.2 | ||||||||
Range of use
Make reinforcement treatment for various kinds of soft soil foundation and strengthen shearing resistance of the soil body, used in reinforcement of retaining wall and widing the old road. It is also used as protect-support net in the coal mine when layer mining of thick(coal) seam and high thick (coal) seam, and support of road way in the coal mine.
Our certificates
Payment and delivery
Our advantage
Customer visits
Thanks for your visit, if you have any requirement about our product, just feel free to contact us as the following contact method.
Contact us
Tel: +86-534-2567999
Email: xygeotextile@gmail.com
Add: Development Zone, Ling Conty, Dezhou City, Shandong Province, China.
序号No. | 指标 Item | 备注 | |||||||||||
1 | Unite weight, g/m2 | 140 | 202 | 260 | 320 | 390 | 460 | 530 | 600 | 680 | 760 | 950 | |
2 | Breaking strength, LD,KN/M | 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 182 | 200 | 250 | |
3 | Breaking strength, TD, KN/M | According to contract,if no special demands, it will be 1.7times of LD breaking strength | |||||||||||
4 | Breaking elongation % ≤ | LD 35, TD 30 | |||||||||||
5 | Width variation % | -0.1 | |||||||||||
6 | CBR mullen burst strength, KN≥ | 20. | 4.0 | 6.0 | 8.0 | 10.5 | 13 | 15.5 | 18 | 20.5 | 23 | 28 | |
7 | （O95）mm Sieve size | 0.07-0.5 | |||||||||||
8 | Vertical permeability coefficient, cm/s | K×（10-2-0.5-5） | K=1.0-9.9 | ||||||||||
9 | Impact irrigation thickness variation | ±8 | Only for fabric form | ||||||||||
10 | Length width variation % | ±2 | |||||||||||
11 | Sewing strength, KN/m ≥ | Breaking strength ×50% | |||||||||||
12 | Tearing strength, KN,≥ | 0.5 | 0.8 | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 | 2.1 | 2.3 | 2.5 | 3.0 | |
